Reptilia DOT Mount, Aimpoint Micro

$124.99 USD

Shipping calculated at checkout.

Color: Black

Black Brown

Size: Black, Height 49 mm / 1.93"

Black, Height 49 mm / 1.93" FDE, Height 49 mm / 1.93"

Product variants

A few left in stock! – 90% of orders are shipped during the next business day.

Technical details and instructions

Compatibility

This DOT mount is compatible with the following optics:

Aimpoint: Micro R-1, H-1, H-2, T-1, T-2, CompM5
Sig Sauer: ROMEO4 , ROMEO5, ROMEO-MSR
Vortex: Crossfire, Spitfire, Sparc I & II
Primary Arms: Classic Series Gen II, SLx Advanced Rotary Knob Microdot, SLx Compact 1×20 Prism Scope (ACSS Cyclops)
Holosun: HS403 (not HS403A), HE403, HS503, HE503, HS515, HE515, HE530

Included in the Package

DOT mount
4 hex screws for mounting the red dot sight
2mm hex key

Recommended Torque Specs

What's torque, you ask? In firearm installations, it's advisable to follow the torque values provided by the manufacturers – that is, how tight the screws should be fastened. So, get yourself a torque wrench with a range of about 0-70 in-lbs / 0-8 Nm! Tighten the DOT mounting clamp screw to 45 in-lbs / 5.1 Nm.

Note:Your red dot sight attaches to the DOT with screws provided with the mount, according to the torque specs of your sight – so check the specs from your sight's manual or the manufacturer. Typically, the torque is around 12 in-lbs / 1.4 Nm (Aimpoint Micro), so the force needed is quite minimal. If you overdo it, you might damage something and have a bad time.

Installation Instructions

Here's an installation video. Below are also step-by-step written instructions. For installation, it’s also good to have some sort of aid to keep the rifle in place, such as a bench vise and for AR rifles, a device like theMagpul BEV Block.

Tools Required

The included screws and 2mm hex key
T25 Torx tool or a large flathead screwdriver (we recommend a Torx tool)
Recommended: Torque wrench for small torques (e.g., 0-70 in-lbs / 0-8 Nm)

Installing Red Dot Sight on DOT Mount

You'll need the included screws and hex key for this step
You can also use your own 2mm hex bit with a torque wrench
Mount the sight correctly onto the DOT to the manufacturer's specified torque
Perform this step somewhere other than above a drain, a full trash can, or similar (we have been there)

DOT Mount Installation

You'll need the T25 Torx tool and torque wrench for this step
Place the mount in a preferred position on the Picatinny rail
Press the mount downward and forward, then lightly tighten the clamp screw
Finally, torque the clamp screw to 45 in-lbs / 5.1 Nm

Description

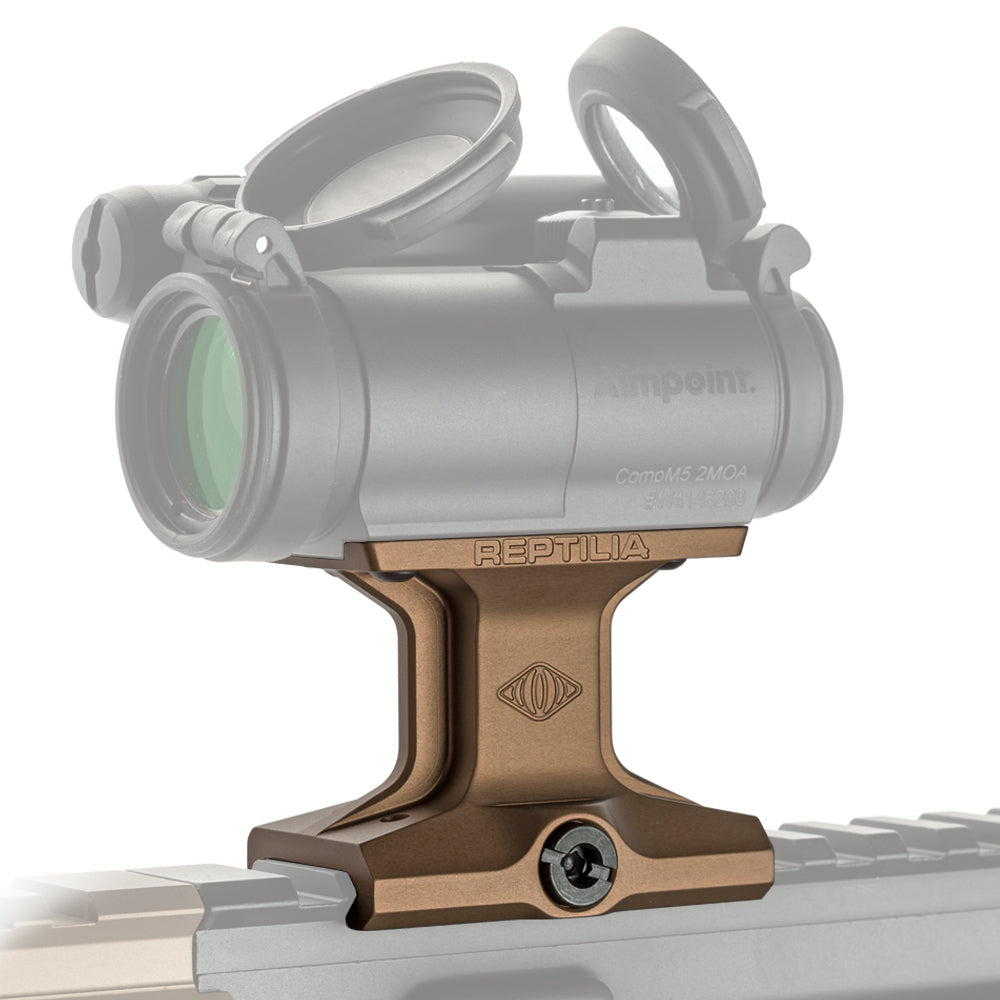

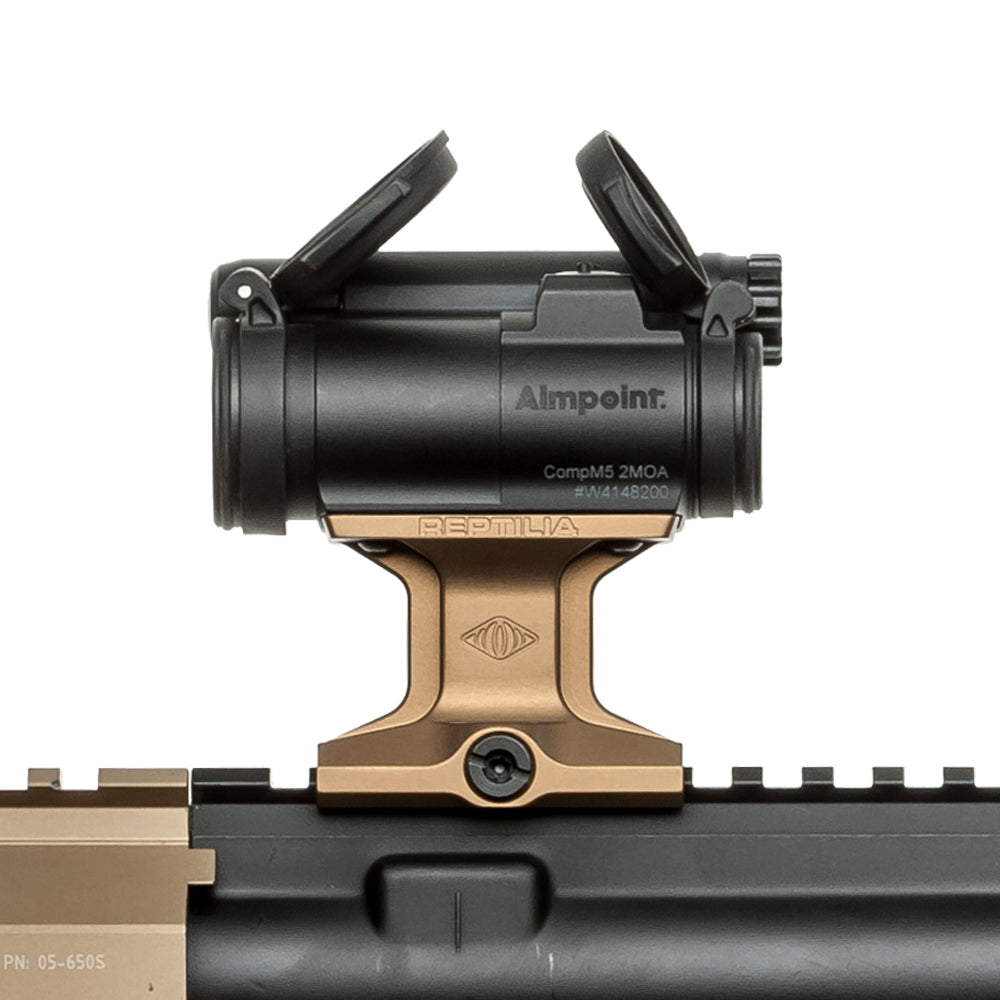

Here is a very simple and sturdy mount for your red dot sight! This Reptilia DOT Mount is compatible with Aimpoint Micros and other optics that use the same footprint – check the list for examples.

Very light
Sturdy construction
1.93" sight height

This mount is compatible with Aimpoint Micros and other optics with the same footprint. The sight height is 49 mm / 1.93" from the top of the rail, which makes this suitable for operating a rifle while wearing a gas mask and/or NVGs. It comes in two colors: black and FDE.

Features

The Reptilia DOT Mount attaches to the Picatinny rail with a spring-loaded steel clamp. You can tighten the screw with either a T25 Torx tool or a flat blade screwdriver (we recommend a Torx tool) – remember to press the mount downward and forward while tightening to keep it firmly in place despite recoil. The mount is machined from a single piece of 7075-T6 aluminum and finished with MIL-STD Type III Class 2 hard anodized coating.
